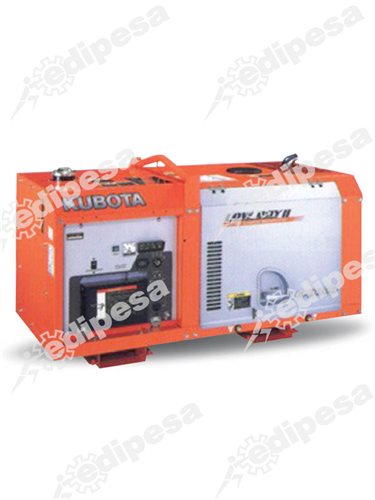

KUBOTA Grupo electrógeno Encapsulado GL11000 11.0KW 1F diesel A/E 120/220V 20.5HP
ESPECIFICACIONES TÉCNICAS
| GL11000 KUBOTA GL SERIES | |||
| Type | Rotating field single-phase AC Generators | ||
| Frequency | Hz | 60 | |
| Standby Output | kVA (kW) | 11.0 (11.0) | |
| Prime Output | kVA (kW) | 10.0 (10.0) | |
| Voltage – Single Phase | V | 120/240 | |
| Armature Connection | Series | ||
| Phase / Wire | 1/3 | ||
| Power Factor | 1.0 | ||
| No. of Poles | 2 | ||
| Insulation | Class | Rotor coil; class F, Stator coil; class B | |
| Type of Coupling | Direct coupled | ||
| AMPS | |||
| Single Phase 120V | A | 41.7 x 2 | |
| Single Phase 240V | A | 41.7 | |
| NO. OF RECEPTACLE | |||
| 5-15R (GFCI) | N/A | ||
| 5-20RA (GFCI) | 2 | ||
| 6-15R | N/A | ||
| L5-30R | 1 | ||
| L6-30R | 1 | ||
| CS-6369 | 1 | ||
| TERMINAL | |||
| Terminal | Available | ||
| DIESEL ENGINE | |||
| Type | Vertical, liquid-cooled, 4-cycle diesel engine | ||
| Model | D722 | ||
| No. of Cylinders | 3 | ||
| Bore x Stroke | mm (in.) | 67.0 x 68.0 (2.6 x 2.7) | |
| Displacement | L (cu. in.) | 0.719 (43.9) | |
| Engine Speed | rpm | 3600 | |
| Continuous Rated Output | kW (HP) | 12.2 (16.3) | |
| Lubricant (API classification) |
above CF grade | ||
| Oil Capacity | L (gal) | 3.4 (0.9) | |
| Coolant Capacity | L (gal) | 4.1 (1.1) | |
| Starting System | Electric – 12 volt DC | ||
| SET | |||
| Fuel | Diesel fuel No.2 (ASTM D975) | ||
| Fuel Consumption |
at Full Load | L/h (gal./h) | 4.1 (1.09) |
| at 3/4 Load | L/h (gal./h) | 3.3 (0.86) | |
| at 1/2 Load | L/h (gal./h) | 2.7 (0.71) | |
| at 1/4 Load | L/h (gal./h) | 2.2 (0.59) | |
| Fuel Tank Capacity | L (gal.) | 28.0 (7.4) | |
| Continous Operation Hours |
at Full Load | h | 7.0 |
| at 3/4 Load | h | 8.5 | |
| at 1/2 Load | h | 10.4 | |
| at 1/4 Load | h | 12.7 | |
| Battery (Ah/5h) | 55B24R (12V x 36Ah) | ||
| Dimensions L x W x H |
mm (in.) | 1281 x 618 x 698 (50.4 x 24.3 x 27.5) |
|
| Approx. Net Weight | kg (lbs.) | 295 (650) | |
| Sound Level (Full Load at 23 ft. [7m]) |
dB (A) | 68 | |
| Emergency Stop System | In case of abnormal: Oil pressure, water temperature, or When the access terminal cover is opened (terminal type only) | ||
